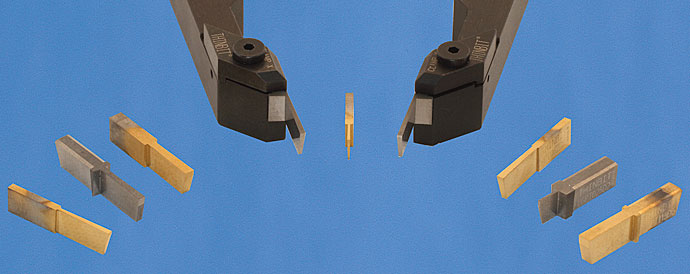

Insertable External/Internal Grooving Tools
Shown: Right Hand Insert in Right Hand Toolholder
- For internal diameters of 1.250" and larger.
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments.
- Inserts can groove, turn/bore and generate profiles.
- Inserts can also be used for face grooving.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

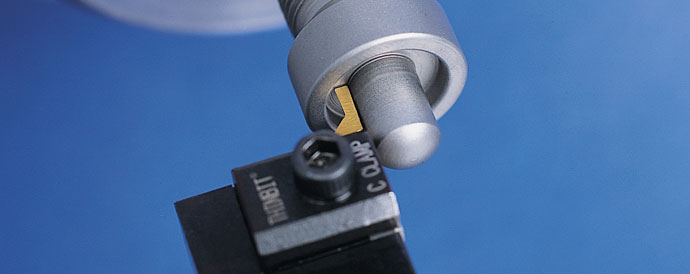

GROOVE 'N TURN®
Insertable Face Grooving Tools
Shown: Left Hand, Counter-Clockwise Insert in Left Hand, Straight Toolholder
- Major diameters of .300", .750", 1.250" and 3".
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments Inserts can groove, turn/bore and generate profiles.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Insertable Dovetail Face Grooving Tools
Shown: Style 5 (ID) Insert in Right Hand, 90° Toolholder and Style 6 (OD) Insert in Right Hand, 90° Toolholder
- For dovetail o-ring grooves.
- Groove widths .030", .050", .060", .070", .080", .090", .100", .125" and .150".
- Back clearance 24° (66° undercut).
- Major diameters starting from .300".
- Can be used on OD applications.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Insertable Threading Tools
Shown: Right hand Insert & Toolholder
- 60° profile for external and internal threading.
- 8 Threads Per Inch and greater.
- Sharp corner or .002" nose radius For internal diameters of 1.250" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Insertable Parting Tools
Shown: Various Parting Tools
- For diameters 1" and smaller.
- Parting widths .025", .045" .062" .085" and .115".
- Narrow widths reduce material loss and part deflection.
- Perfect for thin wall tubing, precious metals and small diameter parts.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Static O-Ring Grooving Tools
Shown: Static O-Ring Insert in Right Hand Toolholder
- For static o-ring grooves.
- For internal diameters of 1.250" and larger.
- Groove widths .095", .125" and .142".
- Included Angle 7°, .010" and .020" Radius.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Insertable Static O-Ring Face Grooving Tools
Shown: Counter-Clockwise Insert in Right Hand, 90° Toolholder
- Major diameters of .300" and .750".
- Groove Widths .086", .103", .122" .138" and .125".
- For Depths of Cut to .250".
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
GROOVE 'N TURN®
Insertable Chamfering Tools
Shown: Right hand Toolholder
- 45° profile for internal or external chamfering.
- For internal diameters of 1.250" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
