Form Tooling Products

FORM-A-GROOVE®
External Insert Style Form Tools

FORM-A-GROOVE®

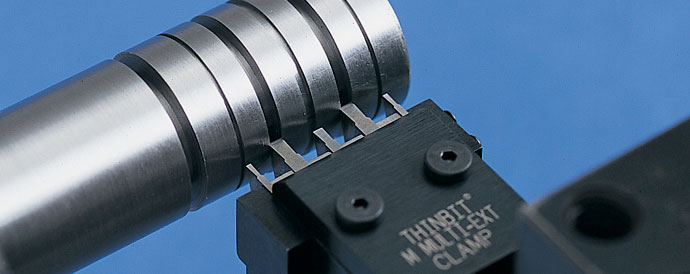

External Form Tools Shown: External Multi-Insert Grooving
  • Used for generating multiple groove forms simultaneously.
  • Forms can consist of combinations of grooves, arcs, angles, convex and concave radii.
  • Form tools simplify programming, decrease cycle time and reduce tooling.
  • Individual inserts and spacers are stacked to create the form. This design allows more flexibility to replace a single insert when it is dull.
  • External applications up to 2" wide.
  • Send your print and an experienced application engineer will design a custom form tool for your application.
  • Fast delivery: most orders ship within 2 weeks.
  • Order quantities from 5 pieces to 100 or more.

FORM-A-GROOVE®
Internal Insert Style Form Tools

FORM-A-GROOVE®
Internal Form Tools Shown: Internal Multi-Insert Grooving
  • Used for generating multiple groove forms simultaneously.
  • Forms can consist of combinations of grooves, arcs, angles, convex and concave radii.
  • Form tools simplify programming, decrease cycle time and reduce tooling.
  • Individual inserts and spacers are stacked to create the form. This design allows more flexibility to replace a single insert when it is dull.
  • Internal applications up to 1" wide, with a 1.125" minimum bore.
  • Send your print and an experienced application engineer will design a custom form tool for your application.
  • Fast delivery: most orders ship within 2 weeks.
  • Order quantities from 5 pieces to 100 or more.

FORM-A-GROOVE®
External Form Tools

FORM-A-GROOVE®

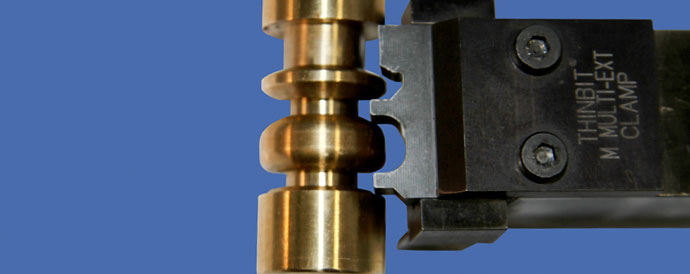

External Form Tools Shown: External Form Tool Grooving
  • Used for generating multiple groove forms simultaneously.
  • Forms can consist of combinations of grooves, arcs, angles, convex and concave radii.
  • Form tools simplify programming, decrease cycle time and reduce tooling.
  • Single piece design maintains precise geometrical relationships and allows for faster changeover.
  • External applications up to 2" wide.
  • Send your print and an experienced application engineer will design a custom form tool for your application.
  • Fast delivery: most orders ship within 2 weeks.
  • Order quantities from 5 pieces to 100 or more.

FORM-A-GROOVE®
Internal Form Tools

FORM-A-GROOVE®
Internal Form Tools Shown: Internal Form Tool
  • Used for generating multiple groove forms simultaneously.
  • Forms can consist of combinations of grooves, arcs, angles, convex and concave radii.
  • Form tools simplify programming, decrease cycle time and reduce tooling.
  • Single piece design maintains precise geometrical relationships and allows for faster changeover.
  • Internal applications up to 1" wide, with a 1.125" minimum bore.
  • Send your print and an experienced application engineer will design a custom form tool for your application.
  • Fast delivery: most orders ship within 2 weeks.
  • Order quantities from 5 pieces to 100 or more.
