DEEPGROOVE®
DeepGroove®
Support Blade Style External Grooving Tools
DeepGroove®
Support Blade Style Internal Grooving Tools
DeepGroove®
Support Blade Style External Chamfering Tools
DeepGroove®
Support Blade Style External Threading Tools
DeepGroove®
Support Blade Style External Parting Tools
DeepGroove®
Support Blade Style Internal Face Grooving Tools
DeepGroove®
Support Blade Style External Face Grooving Tools
DEEPGROOVE®
Support Blade Style External Grooving Tools
Shown: Package 'F' Right hand, Straight shank
- For Depths of Cut to 1".
- Groove widths 2, 3, 4, 5 and 6mm.
- Recessed pocket and raised edge for chip control.
- Geometries including lead angles, top rakes and custom forms can be provided.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations. Round toolholders in 3/4", 1", 20mm and 25mm.
- Modular system can be configured for Face Grooving.
DEEPGROOVE®
Support Blade Style Internal Grooving Tools
Shown: Right Hand Toolholder
- For internal diameters of 1.00" and larger.
- Elliptical neck designed for maximum rigidity.
- For Depths of Cut up to .500".
- Groove widths 2, 3 and 4mm.
- Recessed pocket and raised edge for chip control.
- Geometries including lead angles, top rakes and custom forms can be provided.
- Toolholder shank sizes of 3/4" and 1".
DEEPGROOVE®
Support Blade Style External Chamfering Tools
Shown: 3mm insert, 90° profile
- 3mm insert, 90° profile for external chamfering.
- Recessed pocket and raised edge for chip control.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations. Round toolholders in 3/4" and 1".
- Geometries including lead angles, top rakes and custom forms can be provided.
DEEPGROOVE®
Support Blade Style External Threading Tools
Shown: Package 'F' 3mm insert
- 3mm insert, 60° profile for external threading.
- 6 threads per inch and greater.
- Recessed pocket and raised edge for chip control.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations.
- Round toolholders in 3/4", 1", 20mm & 25mm.
- Geometries including top rakes and custom forms can be provided.

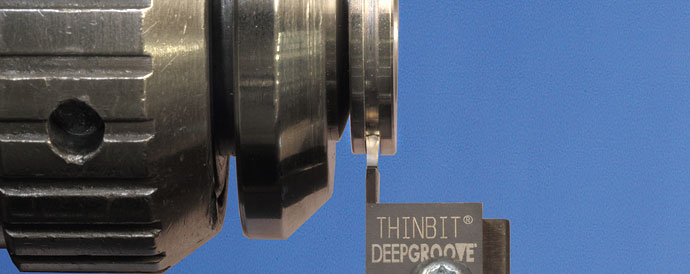

DEEPGROOVE®
Support Blade Style External Parting Grooving
Shown: Package "F" 2mm Parting Insert
- For diameters 2" and smaller.
- Parting widths 2, 3, 4, 5 and 6mm.
- Typically used for CNC machining and large diameter parts.
- Recessed pocket and raised edge for chip control.
- Inserts can also be used for grooving and face grooving.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm & 25mm in straight and 90° orientations. Round toolholders in 3/4", 1", 20mm & 25mm.
- Modular system can be used for Face Grooving.
DEEPGROOVE®
Support Blade Style Internal Face Grooving Tools
Shown: Package 'N' Right Hand Shank, Counter-Clockwise
- For internal Face Grooving diameters of 1.574" and larger.
- For Depths of Cut up to 1".
- Groove widths 2, 3, 4, 5 and 6mm.
- Recessed pocket and raised edge for chip control inserts can also be used for parting and OD/ID grooving.
- Geometries including lead angles, top rakes and custom forms can be provided.
- Round toolholders in 3/4", 1", 20mm and 25mm.
- Modular system can be used for Face Grooving/Parting.
DEEPGROOVE®
Support Blade Style External Face Grooving Tools
Shown: Package 'D' Right hand, 90° Shank, Counter-Clockwise
- For Depths of Cut to 1".
- Groove widths 2, 3, 4, 5 and 6mm.
- Major diameters starting from .787".
- Recessed pocket and raised edge for chip control Inserts can also be used for parting and OD/ID grooving.
- Geometries including lead angles, top rakes and custom forms can be provided.
- CNC, Swiss, Conventional and round toolholders of various sizes and orientations available.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations. Round toolholders in 3/4", 1", 20mm and 25mm.
- Modular system can be configured for Grooving/Parting.
